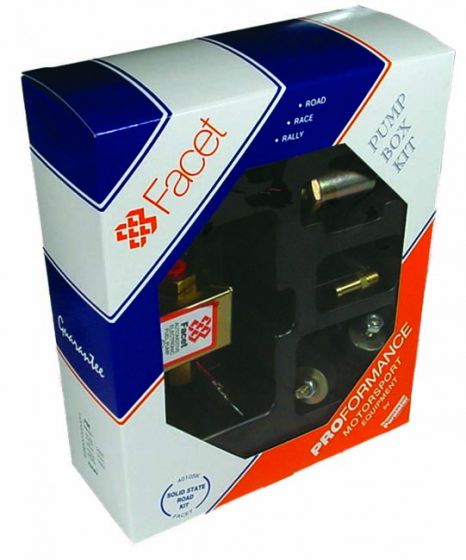

Facet Solid State Pump Kit 40185K

Product Code
40185-K
£ 74.84
In stock

Facet Solid State Pump Kit 40185K

These solid-state technology electronic fuel pumps provide outputs up to 132.5 liters/hour and .68 bar. Facet/Purolator Cube Fuel Pumps are self-priming with a gerneral dry lift capacity 0.3 metres. Two universal models provide complete coverage for all low and high-pressure carburetor applications for cars, vans, RV’s, and light trucks, in addition to many diesel applications. All models of the Facet/Purolator Cube Fuel Pumps are compatible with gasoline, diesel, biodiesel, blended alcohol fuels, and fuel additives.

Contents

1x Pump (40107)

1x 8mm Straight Union (FPA903A)

1x 8mm Filter Union (FPA906)

1x Facet Mounting Kit (FPA905)

Specification
Pump:- 40107
Voltage:- 12v
Earth:- Neg
Pressure (Psi):- 7.0-10
Flow:- US Gallons/Hr 34
Dry Prime Height in Mtrs:- 0.3
Thread Size:- 1/8th nptf
Operating Temperature:- -31º F to 55° F (all Models)

Legal Requirements:- Certified & Complies With EEC 95/54 Requirements

Length:- 75mm

Height:- 60mm

Weight:-0.5kg

Fuel Union Installation:- When fitting fuel unions, either wrap PTFE tape around the threads or use Loctite 243 to create a fuel proof seal

Please Note:- The product in not suitable for use in the aircraft industry

Cross Reference

Make & Model Part Number
Kramp RE535717KR
More Information
Product Code 40185-K
Manufacturer Facet
Description

Facet Solid State Pump Kit 40185K

These solid-state technology electronic fuel pumps provide outputs up to 132.5 liters/hour and .68 bar. Facet/Purolator Cube Fuel Pumps are self-priming with a gerneral dry lift capacity 0.3 metres. Two universal models provide complete coverage for all low and high-pressure carburetor applications for cars, vans, RV’s, and light trucks, in addition to many diesel applications. All models of the Facet/Purolator Cube Fuel Pumps are compatible with gasoline, diesel, biodiesel, blended alcohol fuels, and fuel additives.

Contents

1x Pump (40107)

1x 8mm Straight Union (FPA903A)

1x 8mm Filter Union (FPA906)

1x Facet Mounting Kit (FPA905)

Specification
Pump:- 40107
Voltage:- 12v
Earth:- Neg
Pressure (Psi):- 7.0-10
Flow:- US Gallons/Hr 34
Dry Prime Height in Mtrs:- 0.3
Thread Size:- 1/8th nptf
Operating Temperature:- -31º F to 55° F (all Models)

Legal Requirements:- Certified & Complies With EEC 95/54 Requirements

Length:- 75mm

Height:- 60mm

Weight:-0.5kg

Fuel Union Installation:- When fitting fuel unions, either wrap PTFE tape around the threads or use Loctite 243 to create a fuel proof seal

Please Note:- The product in not suitable for use in the aircraft industry

Cross Reference

Make & Model Part Number
Kramp RE535717KR
