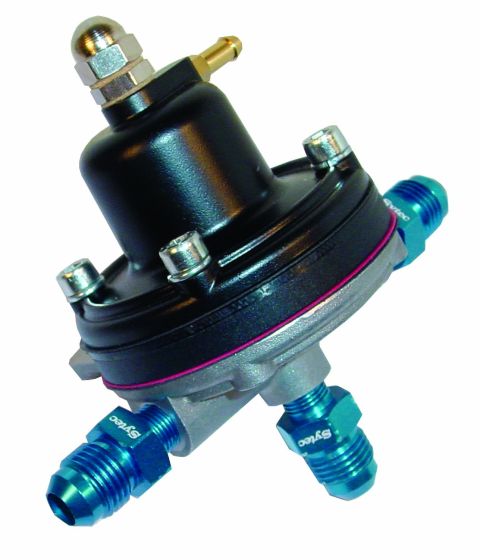

Malpassi Fuel Injection Single Rail Input Conversion Regulator -6 JIC Tails

Malpassi Fuel Injection Single Rail Input Conversion Regulator -6 JIC Tails

This regulator is primarily for engines fitted with fuel rails with only one input and no return and require to be returned

to a convensional flow and return system, it can also be used with engines which have split fuel rails.

EFI Regulator 473 1:1 A competiton fuel pressure regulator designed primarily for Motorsport.

Adaptable for Static ‘fixed Pressure or Variable ‘vacuum / turbo Pressure’

Benefits are:-

Max Flow 8.5 Ltrs/Min

Adjustable between 1.0 Bar (14.6 Psi) - 10 Bar (146 Psi)

Biult in Mounting Bracket

Gauge mounting facilty
