VW Golf R32 Fuel Pump performance Upgrade Kit by Sytec (300 Ltr/Hr)

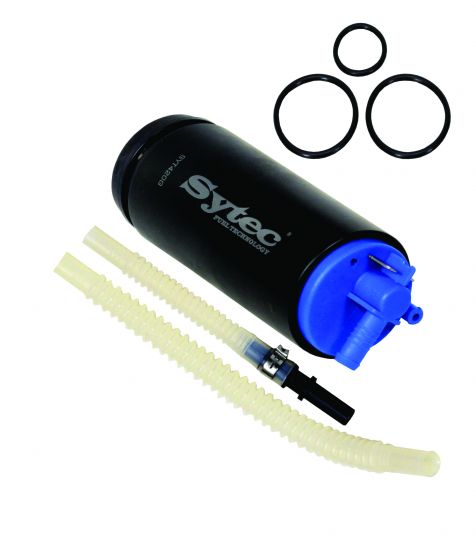

Sytec Motorsport Fuel Pump Kit (VW Golf R32 2002-2005)
Please Note:- The carrier shown in the picture is for indentification purposes only and is not part of the kit.
The new Sytec range of 300 & 340 Ltr/Hr High Performance fuel pumps have been designed and tested with performance & reliability as a priority. Pumps with a part numbers ending in ‘G’ are for vehicles using standard forecourt petrol with up to 10% ethanol content. Part numbers ending with ‘EM’ are compatible with all petrol types up to and including E85 (85% Ethanol)
We have a wide range of kits to suit most modern tuned vehicles and motorsport fuel cells, details of which can be supplied on request.
Fittings In (mm):- 44.8
Fittings Out (mm):- 8
Pump:- Sytec SYT420G
Voltage DC:- 12
Flow Ltr/Hr (Max):- 378
Flow Ltr/Hr @ 3 Bar (44psi):- 282
Flow Ltr/Hr @ 5 Bar (73psi):- 225
Max Flow for secondary feed :- 3.2 Ltr/Min
Max Pressure:- 10.5 Bar
Length (mm):- 136
Diameter (mm):- 50
Weight (Kg):- 0.276
Applications:-
| Make / Model | Year | ||
| AUDI A3 (8L1) 1.8 T quattro | 10.98 - 05.03 | ||
| AUDI A3 (8L1) S3 quattro | 03.99 - 04.02 | ||
| AUDI A3 (8L1) S3 quattro | 10.01 - 05.03 | ||
| AUDI A3 (8L1) S3 quattro 2.2 v6 | 2001-2004 | ||
| AUDI TT (8N3) 1.8 T quattro | 10.98 - 06.06 | ||
| AUDI TT (8N3) 1.8 T quattro | 10.98 - 06.06 | ||
| AUDI TT Roadster (8N9) 1.8 T quattro | 02.00 - 06.06 | ||
| AUDI TT Roadster (8N9) 1.8 T quattro | 10.99 - 06.06 |
| Description | Model Year |
| SEAT LEON (1M1) 1.4 16V | 11.99 - 06.06 |
| SEAT LEON (1M1) 1.6 | 11.99 - 06.06 |
| SEAT LEON (1M1) 1.8 20V | 11.99 - 06.06 |
| SEAT LEON (1M1) 1.8 20V T | 11.99 - 06.06 |
| SEAT LEON (1M1) 1.8 20V T 4 | 11.99 - 06.06 |
| SEAT TOLEDO Mk II (1M2) 2.3 V5 | 10.98 - 11.00 |
| Description | Model Year |
| VW GOLF Mk IV (1J1) 3.2 R32 4motion Engine Code: BFH |
09.02 - 06.05 |
| OE Info | ||
| Manufacturer | OE Number | |
| AUDI | 8L9919051B | |
| AUDI | 8L9919051F | |
| AUDI | 8L9919051E | |
| AUDI | 8L9919051G | |
| AUDI | IK0919051BB | |
| SEAT | 8L9919051G | |
| SEAT | 8L9919051E | |
| SEAT | 8L9919051F | |
| SEAT | 8L9919051B | |
| SKODA | 8L9919051E | |
| SKODA | 8L9919051G | |
| SKODA | 8L9919051B | |
| SKODA | 8L9919051F | |
| Radical Sports Cars | 993762053 | |
| VAG | 8L9919051G | |
| VAG | 8L9919051E | |
| VAG | 8L9919051F | |
| VAG | 8L9919051B | |
| VW | 8L9919051G | |
| VW | 8L9919051E | |
| VW | 8L9919051F | |
| VW | 8L9919051B | |
| Product Code | SPK0200 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Fuel | Petrol up to E10 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Manufacturer | Audi, Seat, Skoda, Volkswagen | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Voltage | 12v DC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Manufacturer | Sytec | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Description | Sytec Motorsport Fuel Pump Kit (VW Golf R32 2002-2005)Please Note:- The carrier shown in the picture is for indentification purposes only and is not part of the kit. The new Sytec range of 300 & 340 Ltr/Hr High Performance fuel pumps have been designed and tested with performance & reliability as a priority. Pumps with a part numbers ending in ‘G’ are for vehicles using standard forecourt petrol with up to 10% ethanol content. Part numbers ending with ‘EM’ are compatible with all petrol types up to and including E85 (85% Ethanol) We have a wide range of kits to suit most modern tuned vehicles and motorsport fuel cells, details of which can be supplied on request. Fittings In (mm):- 44.8 Fittings Out (mm):- 8 Pump:- Sytec SYT420G Voltage DC:- 12 Flow Ltr/Hr (Max):- 378 Flow Ltr/Hr @ 3 Bar (44psi):- 282 Flow Ltr/Hr @ 5 Bar (73psi):- 225 Max Flow for secondary feed :- 3.2 Ltr/Min Max Pressure:- 10.5 Bar Length (mm):- 136 Diameter (mm):- 50 Weight (Kg):- 0.276
Applications:-
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
