Malpassi Carburettor Fuel Pressure Regulator (Anti-Vapour Lock)

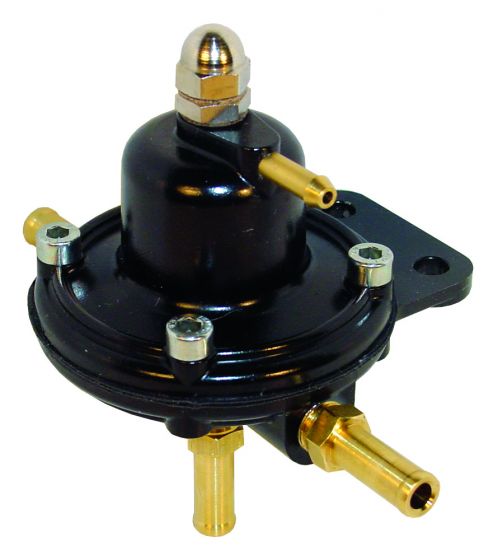

Malpassi Carburettor Fuel Pressure Regulator FPR015 (Anti-Vapour Lock)

This is a bypass fuel pressure regulator for carburetted engines wich have fuel vapour lock issues.
Please Note:- a returm to tank fuel line will be required

• Compatible with alcoholed fuel (E85)
• Composite special diaphragm
• 1 x INLET port, 1/8" NPT
• 1 x OUTLET port, 1/8" NPT
• 1 x RETURN port, 1/8" NPT
• 1 x boost connector, 5 mm tail (only for turbo applications)
• Supplied with 3 x 1/8" NPT connectors (8 mm tail)

Connections
