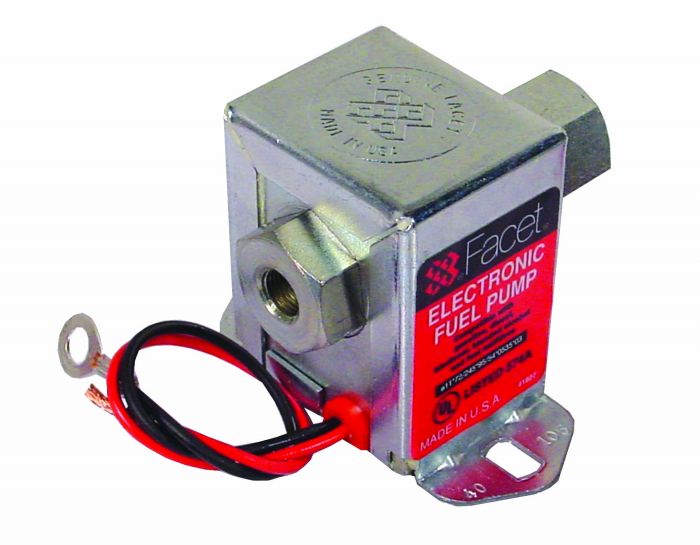

Facet 40104 Solid State Fuel Pump
These solid-state technology electronic fuel pumps provide outputs up to 132.5 liters/hour and .68 bar. Facet/Purolator Cube Fuel Pumps are self-priming with a gerneral dry lift capacity 0.3 metres. Two universal models provide complete coverage for all low and high-pressure carburetor applications for cars, vans, RV’s, and light trucks, in addition to many diesel applications. All models of the Facet/Purolator Cube Fuel Pumps are compatible with gasoline, diesel, biodiesel, blended alcohol fuels, and fuel additives.
Specification:- Road
Pump:- 40104
Voltage:- 12v
Earth:- Neg
Pressure (Psi):- 2.0-4.0
Flow:- US Gallons/Hr 25
Dry Prime Height in Mtrs:- 0.3
Thread Size:- 1/8th nptf
Average Run Time or MTBF:- 6000 hrs
Fuel Union Installation:- When fitting fuel unions, either wrap PTFE tape around the threads or use Loctite 243 to create a fuel proof seal
Positive Shut-Off Valve:- No
Check Valve:- No
Operating Temperature:- -40º F to +180° F
Legal Requirements:- Certified & Complies With EEC 95/54 Requirements
Length:- 75mm
Height:- 60mm
Weight:-0.5kg
Please Note:- The product in not suitable for use in the aircraft industry
Cross Reference:-
| 195-1310 | |
| D57Z9350A | |
| D97Z9850A | |
| GG420-34103 | |
| HC Cargo | 070052 |
| Product Code | SS500 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Colour | Silver | ||||||||||
| Fuel | Petrol up to E10, Petrol + E85, Diesel, Petrol up to E5 | ||||||||||
| Voltage | 12v DC | ||||||||||
| Manufacturer | Facet | ||||||||||
| Description | Facet 40104 Solid State Fuel Pump These solid-state technology electronic fuel pumps provide outputs up to 132.5 liters/hour and .68 bar. Facet/Purolator Cube Fuel Pumps are self-priming with a gerneral dry lift capacity 0.3 metres. Two universal models provide complete coverage for all low and high-pressure carburetor applications for cars, vans, RV’s, and light trucks, in addition to many diesel applications. All models of the Facet/Purolator Cube Fuel Pumps are compatible with gasoline, diesel, biodiesel, blended alcohol fuels, and fuel additives. Average Run Time or MTBF:- 6000 hrs Fuel Union Installation:- When fitting fuel unions, either wrap PTFE tape around the threads or use Loctite 243 to create a fuel proof seal Positive Shut-Off Valve:- No Check Valve:- No Operating Temperature:- -40º F to +180° F Legal Requirements:- Certified & Complies With EEC 95/54 Requirements Length:- 75mm Height:- 60mm Weight:-0.5kg Please Note:- The product in not suitable for use in the aircraft industry Cross Reference:-
|
